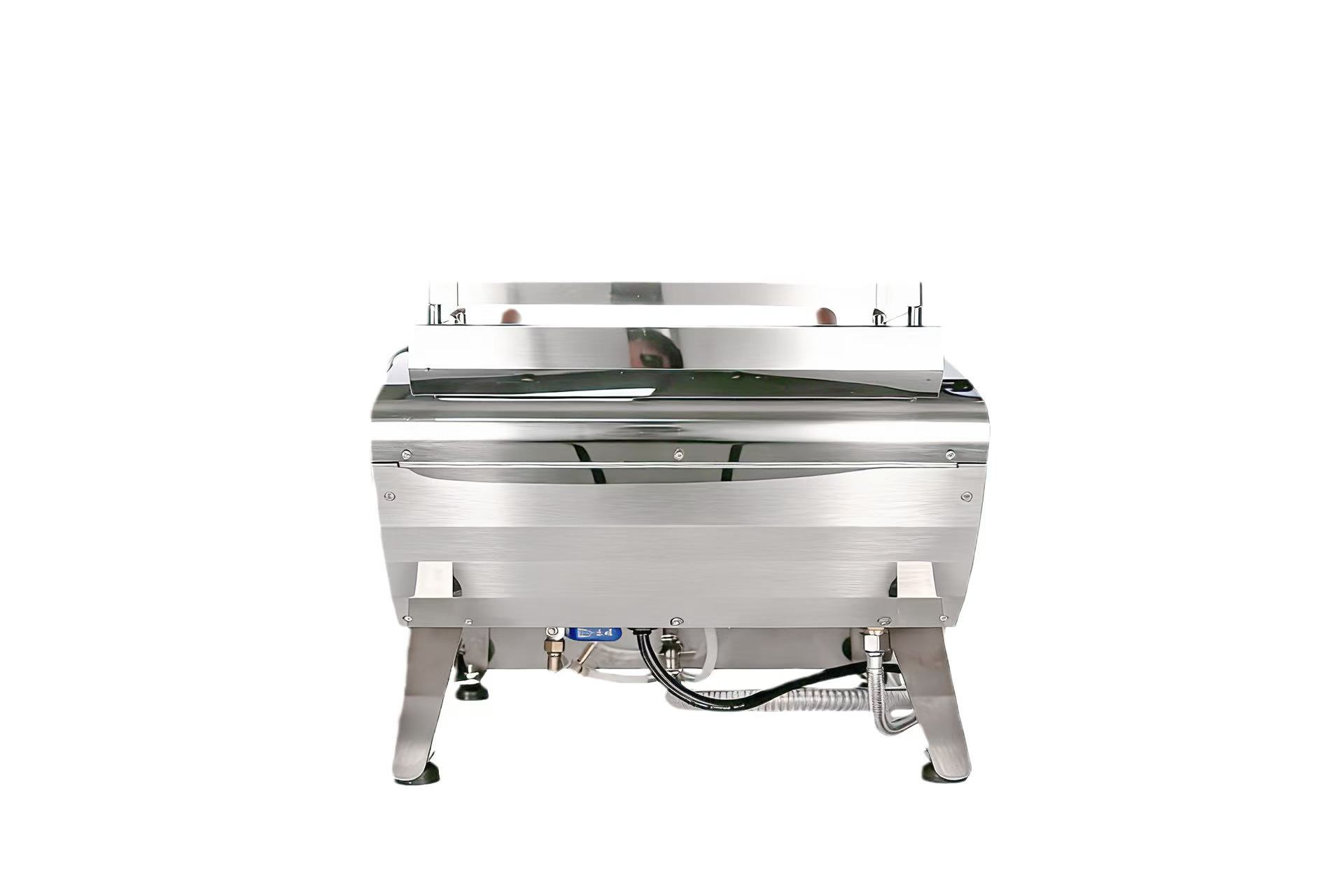

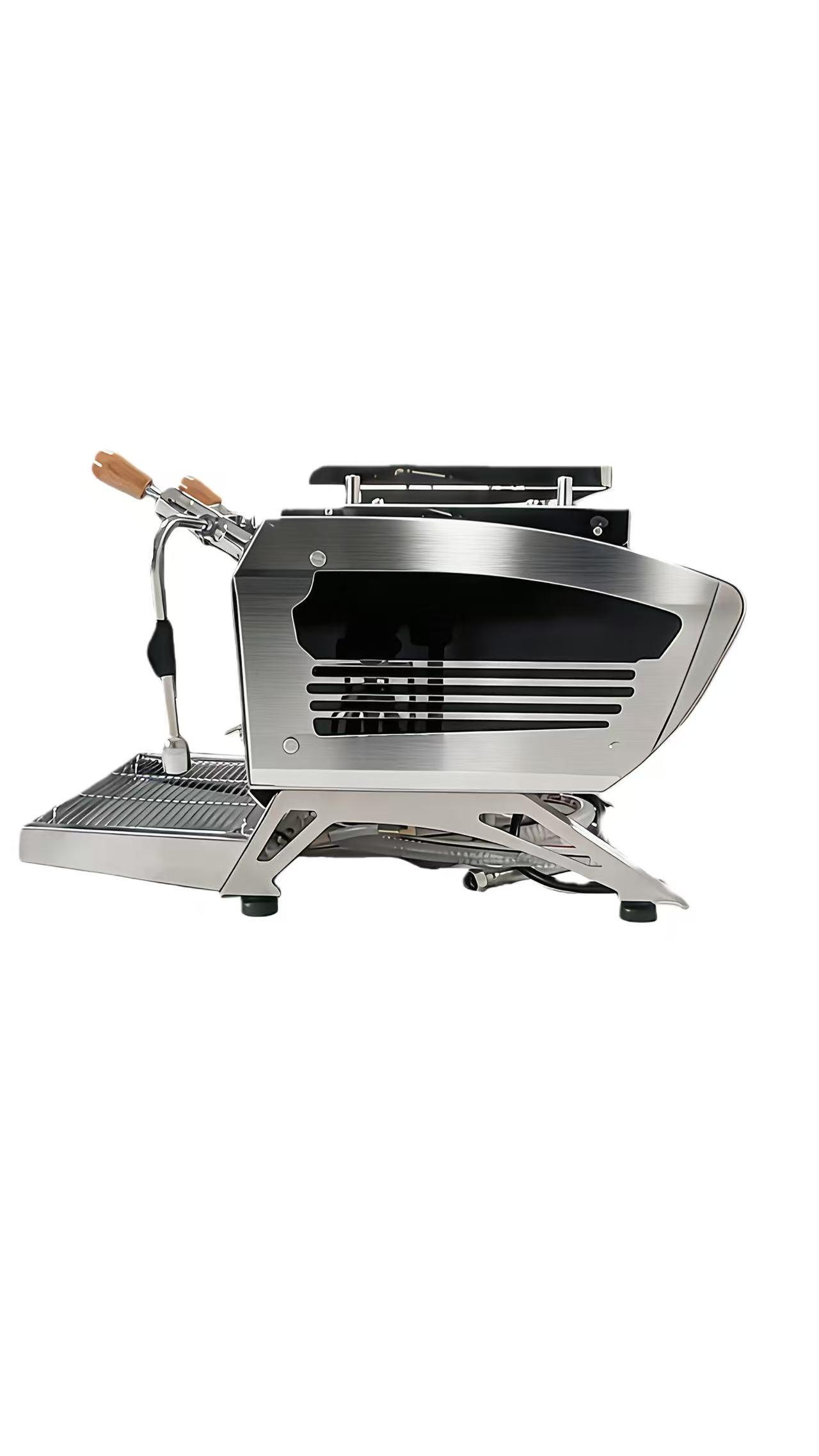

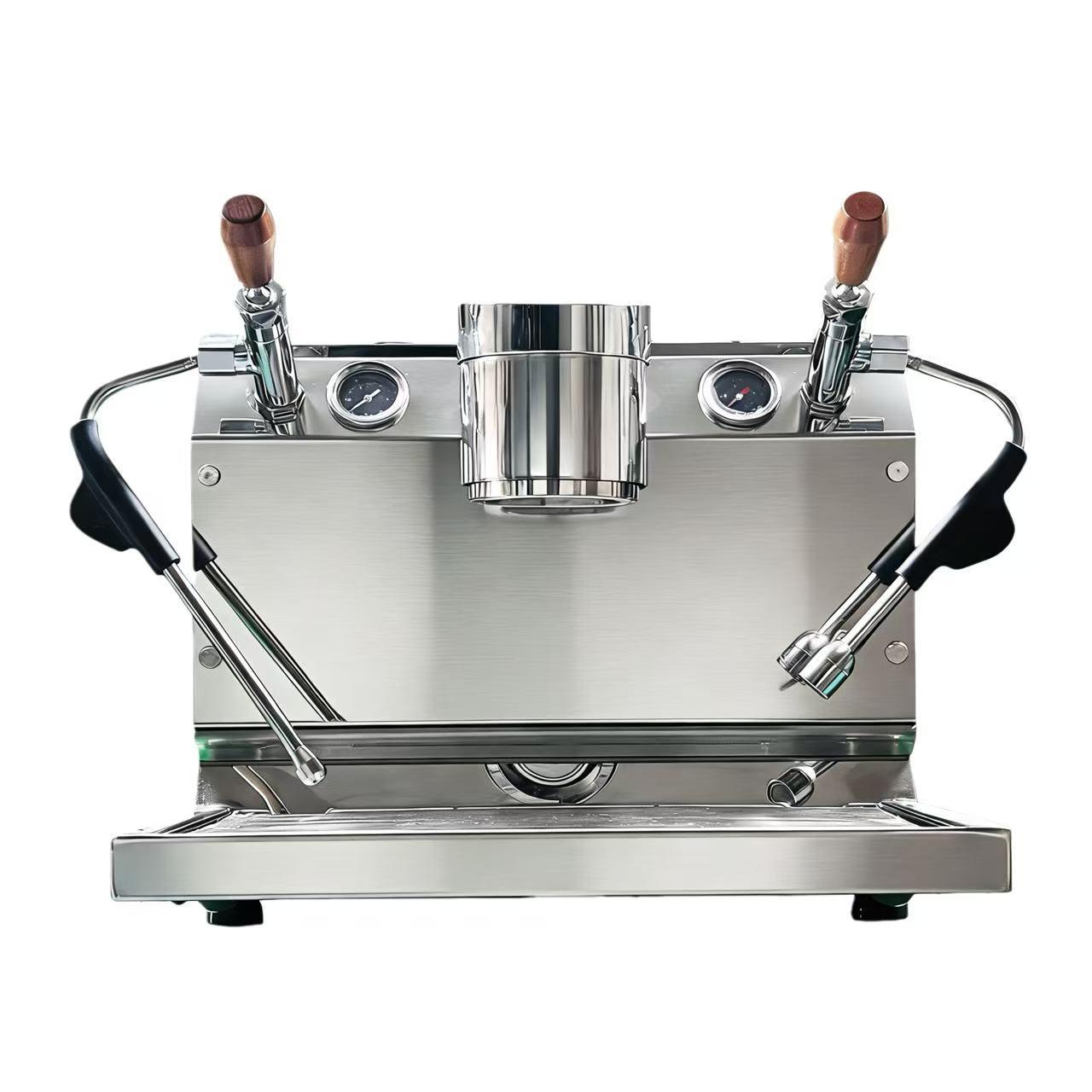

KS580 Commercial Single Group Espresso Machine with Dual Boiler PID T3 System

Professional Dual Boiler Structure

The KS580 features a 5L steam boiler and 1L independent brew boiler. This dual boiler design guarantees temperature stability during continuous operation, allowing simultaneous brewing and milk frothing without fluctuation.

PID + T3 Temperature Control System

Built with a precise PID dual temperature control system combined with T3 technology, the machine allows accurate control over brew temperature (85–93°C). This ensures optimal extraction for different coffee beans and roast profiles.

Adjustable Pre-Infusion System

The programmable pre-infusion function (0–60 seconds adjustable) improves flavor extraction and enhances crema formation. It also includes a shut-off option for flexible brewing styles.

Imported Rotary Pump

Equipped with an Italian-style rotary pump, the KS580 ensures stable 9 bar extraction pressure (adjustable). The pump design offers quiet operation and consistent water supply for commercial use.

Powerful Steam Performance

• 5L steam boiler
• Adjustable steam pressure (default 1.5–1.8 bar)
• 360° rotating 4-hole stainless steel steam wand

This configuration enables smooth, creamy milk frothing suitable for cappuccino and latte art.

Durable Stainless Steel Construction

The machine body and water tank are made of mirror-finish stainless steel, ensuring corrosion resistance, durability, and a modern commercial appearance.

Technical Specifications

Model: KS580
Voltage: 220V / 50Hz
Power: 3000W
Steam Boiler Capacity: 5L
Brew Boiler Capacity: 1L
Net Weight: 32KG
Gross Weight: 52KG
Machine Size: 420×580×380mm
Packing Size: 665×650×755mm
Color: Stainless Steel

Application Scenarios

• Coffee Shops
• Restaurants
• Boutique Cafés
• Hotel Breakfast Bars
• Specialty Coffee Studios

Why Choose KS580

• Stable dual boiler system
• Adjustable extraction parameters
• Rotary pump commercial configuration
• High durability stainless steel body
• Designed for medium workload cafés
