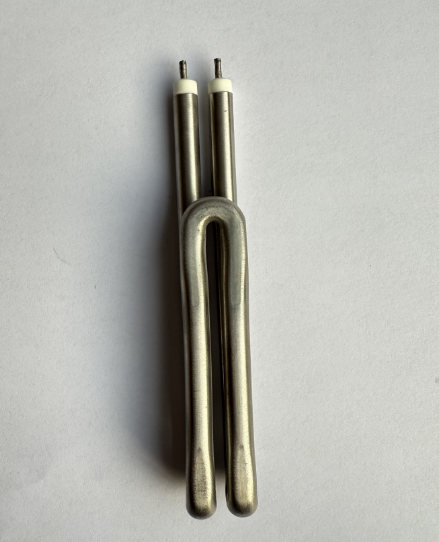

Commercial & Appliance Stainless Steel Heating Tube | 304 Food-Grade | 1500W-5000W |Rohs Certified | Custom OEM

Versatile 304 stainless steel heating tube for both commercial & household appliances. Adjustable 1500W-5000W power, ideal for coffee machines/commercial water heaters. ROHS certified. Custom sizes/voltages available.

1. Core Product Advantages

Dual-Application Design

• Commercial-Grade Performance: Withstands 12+ hours of continuous high-intensity operation, up to 5000W power output, ideal for restaurant boilers and commercial coffee machines.

• Household-Grade Safety: LFGB food-grade certified, mirror-polished surface prevents heavy metal leaching.

Material & Craftsmanship
▸ Medical-grade 304 stainless steel tube body (1.2mm±0.05mm thickness)
▸ Internal nickel-chromium alloy heating wire (80/20 ratio) ensures even heat distribution
▸ TIG welding process, weld strength ≥95% of base material

2. Technical Specifications

3. Application Scenarios

Commercial Solutions

• Commercial Water Heaters: Overheat protection, supports parallel connection for high-capacity demand.

• Steam Sterilizers: Special anti-corrosion coating for high-temperature/humidity environments.

• Catering Equipment: 3-second rapid heating, smart power adjustment (e.g., soup/boiling mode switching).

Household Appliance Solutions

• Premium Electric Kettles: Ultra-thin design (min. 18mm diameter), space-saving.

• Coffee Machines: Quiet operation (<40dB), ideal for offices/homes.

• Instant Water Dispensers: Patented water flow design, 35% higher heating efficiency.

4. Quality Assurance

✓ Production Standard: ISO 9001 certified
✓ Testing Equipment:

• German-made withstand voltage tester (5000V AC breakdown test)

• Salt spray test chamber (500-hour corrosion resistance test)
  ✓ After-Sales Policy:

• Commercial version: 3-year warranty (incl. free technical support)

• Household version: 5-year warranty (2-year free replacement)

5. Service & Support

Customization Process

1. Requirement confirmation (provide drawings/samples/technical parameters)

2. Design proposal within 3 business days (with 3D renderings)

3. Prototyping in 7 days (2 free test samples)

4. Mass production (15-20 days lead time, third-party inspection supported)

Value-Added Services

• Installation video guides & technical manuals

• Assistance with target market certifications (e.g., US NSF, EU ERP)

6. FAQs

Q: Key differences between commercial and household versions?
A: Mainly in power density and certifications:

• Commercial: ≥3000W, focuses on UL/CE

• Household: ≤2500W, requires LFGB/FDA

Q: Can it replace copper heating tubes?
A: Yes! Our 304 stainless steel tubes offer:
✓ 40% cost reduction ✓ 2X longer lifespan ✓ No verdigris issues
